Double Cone Chemical Mixer
JHS Double Cone Powder Blender

Mixed volume of material:10L~30000L

Mixer power:0.5KW~75KW

FOREWORD

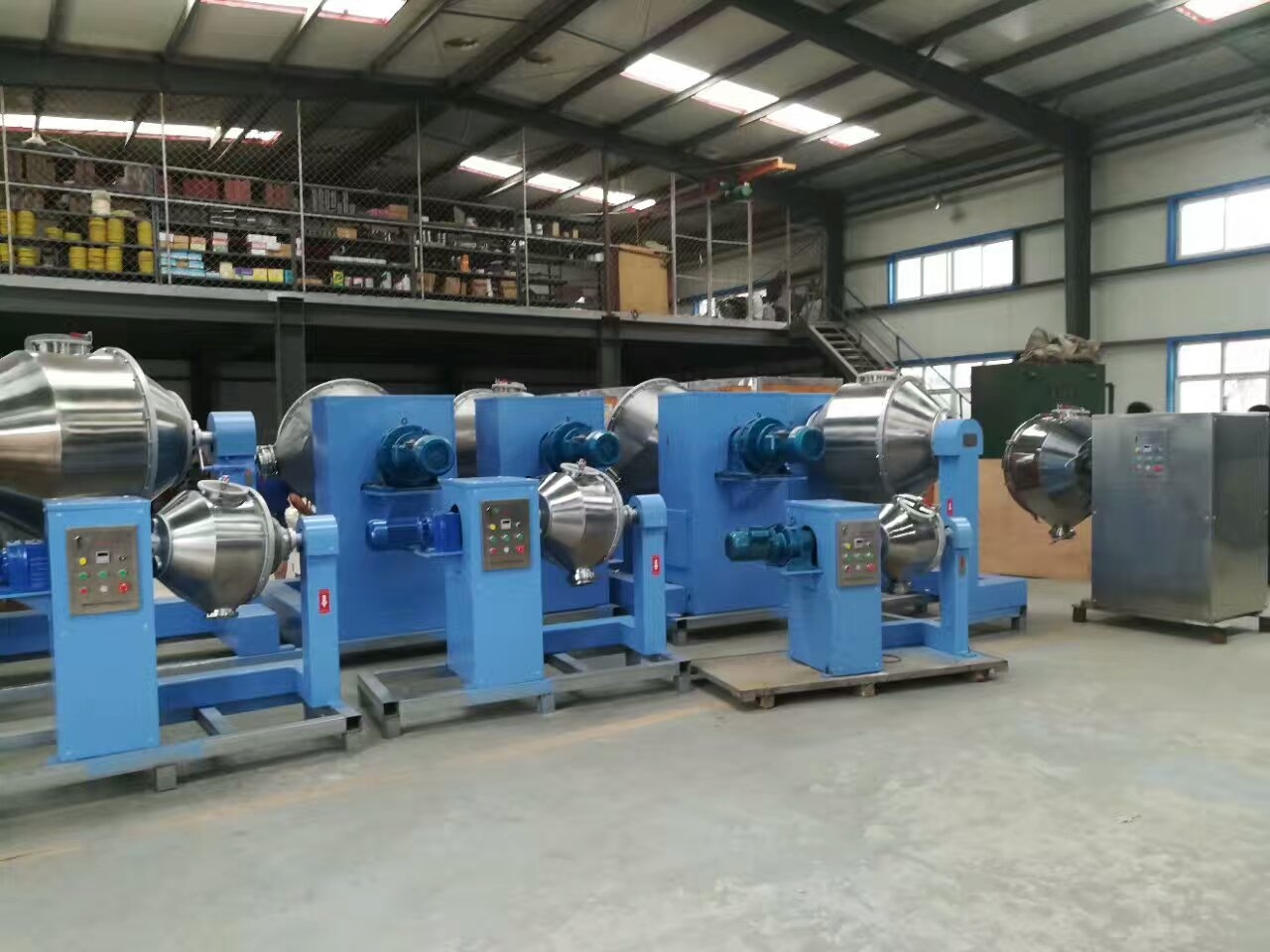

JINHE NEW factory Show
\
\
JINHE® JHS Double Cone Chemical Mixer


JHS double cone chemical mixer machine is used to combine multiple small batch materials into one batch materials (batching) in order to guarantee consistent performance of products.
Because this situation needs huge capacity, operate stably, safety and convenience, JHS double cone chemical mixer machine is adapt to the task.
JHS has its unique advantage that we design 8 huge impending spiral fixed blades so as to improve mixing efficiency. When the barrel turning, dry powder turning over, the spiral blades could make dry powders shunt around. Therefore, this new principle greatly promotes mixing efficiency.
JINHE Double cone chemical mixer machine have 3 types.
One is chemical type: This one use plastic spray processing to treat surface.
Another is pharmacy type: All of the surface is stainless steel and allowed the GMP standard.
The other is Food Type: The food powder mixer machine also allow the GMP standard.
\
Production Introduction
\

\
\

Model Max
Capacity
(L)
Max Barrel
Weight
Capacity
(Kg)
Barrel
Wall
Thickness
(mm)
Barrel
 Speed
(r/min)
Motor
Power
(KW)
Size(mm) Weight
(kg)
JHS300

300 150 3 24 2.2 2200*1100*1650 450
JHS500

500 250 4 24 3 2700*1280*1950 600
JHS1000

1000 500 4 10 7.5 2850*1420*2450 1400
JHS2000

2000 1000 5 10 11 3050*1550*2600 3800
JHS3000

3000 1500 6 8 18.5 3000*1800*3000 5500
JHS5000

5000 2500 6 6 30 4100*2100*3300 7800
JHS10000

10000 5000 8 5 55 4900*3200*4500 11000
JHS20000

20000 10000 8 4 75 5300*3400*5000 13000
JHS30000

30000 15000 8 4 110 5990*3400*5980 16000


Equipment and Constitution Picture

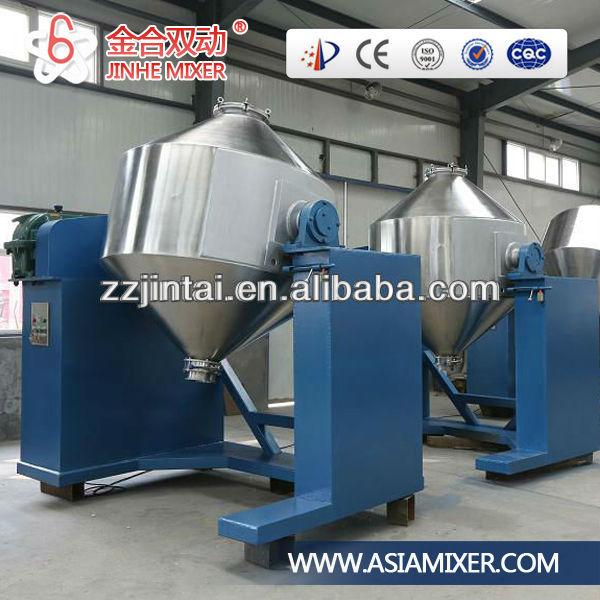

1、JHS Double Cone powder mixer machine appearance

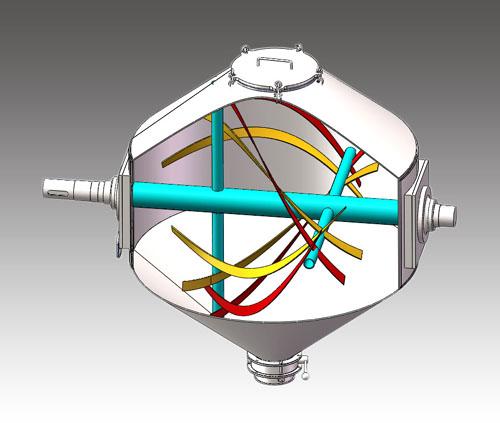

2、JHS Double Cone powder mixer machine structure picture

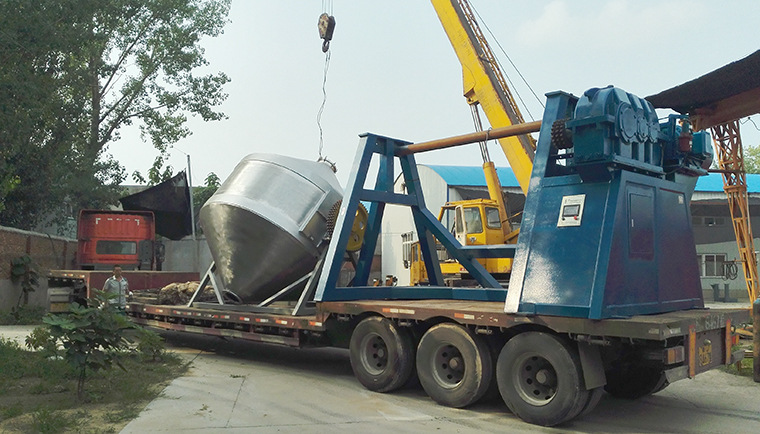

Transportation:





Production Advantage

Usage








Application Case
1st
It’s applied to the mixing of dry powders in industries of powder metallurgy, Pharmaceutical powder, Food additives powders,
Cosmetic powder, magnetic materials, precious metal powder, non-ferrous metal powder, chemicals, abrasives,
foodstuff,feed,dyestuff ,Laboratory and so on.
2nd
Due to its high mixing efficiency, it is particularly suitable for mixing powder which demand strict requirement.
3rd
 Suitable for fine powder, superfine powder, powder with big difference in specific gravity.

JINHE® JHS Double Cone Mixers have already used in lots of famous Corporation.
\
