Powder Machinery
Ultrasonic vibrating sieve machine

Mixed volume of material：

Mixer power：

FOREWORD

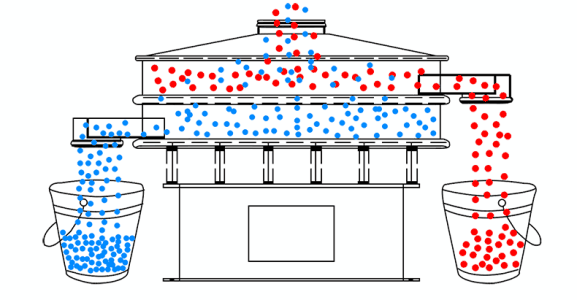

Ultrasonic vibrating sieve machine for materials grading or impurities remove
The utrasonic vibrating wave(machanic  wave) added on the sieve mesh makes superfine powder accept the giant ultrasonic acceleration which restrains blockage factors which includes adhesion,friction,wedging ect and improve sieving and cleaning efficiency.
\
Production Introduction
Technical Parameters:
Model Effective diameter
 (mm)		 Effective sieving area
            (m2)		 Screen mesh Layer Powder(KW)
Vibration
motor		 Common
motor
JHVF-400 Φ340 0.0907 2-500 1-5 0.18 --
JHVF-600 Φ540 0.2289 0.25 0.75
JHVF-800 Φ730 0.4183 0.55 1.1
JHVF-1000 Φ900 0.6359 1.1 1.5
JHVF-1200 Φ1100 0.949 1.1 1.5
JHVF-1500 Φ1400 1.5386 1.5 2.2
JHVF-1800 Φ1700 2.2687 4 3
JHVF-2000 Φ1886 2.7922 4 3.0

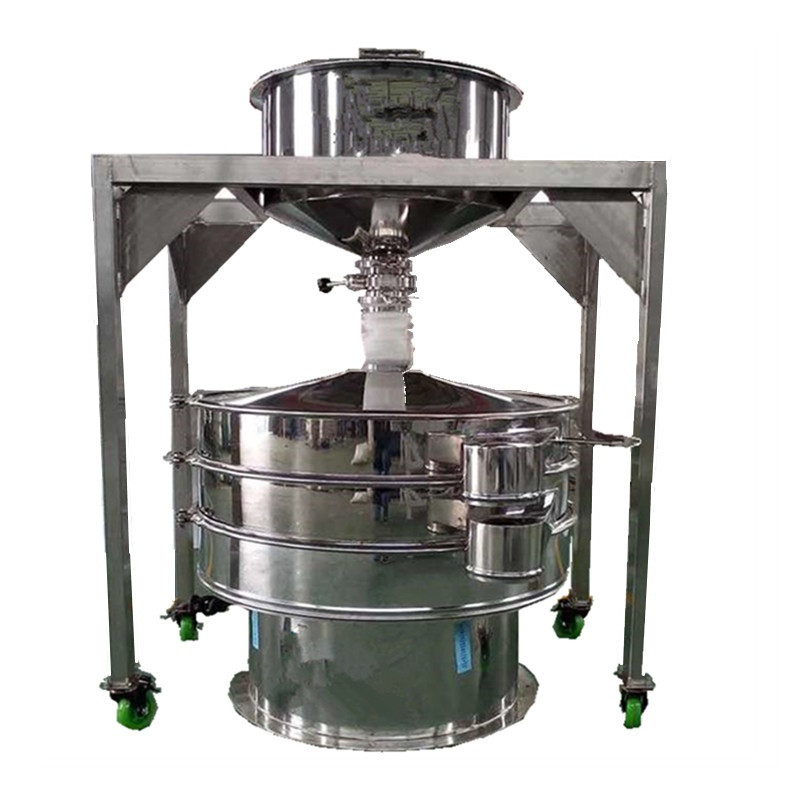

Equipment and Constitution Picture


Production Advantage
Usage
Features
1) High efficiency, refined design, duration,any powders and mucilage are suitable for          using.
2) Easily to replace the screen, simple operation and convenience washing.
3) Never jam the hole meshwork, no powder flying, filter size of the powder between 500      mesh and 0.028 mm.
4) Discharge the impurity and coarse materials automobile and operates continuously.
5) Unique screen flame design, long duration of screen, only 3-5 to replace the screen.
6) Small volume, move easily.
7) The highest layers of the screen are about 5 layers. But 3 layers are suggested.
Application Case

1.Chemical industry: resin, pigment, cosmetic, coatings, Chinese medicine powder.
2. Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder,
    sauce, syrup.
3. Metallurgy, Mine industry: aluminum powered, copper powder, ore alloy powder,
    welding rod powder.
4. Medicinal industry: all kinds of medicine.
5. Waste treatment: disposed oil, disposed water, disposed dye waste water, active
    carbon.
