Horizontal & Vertical Blender

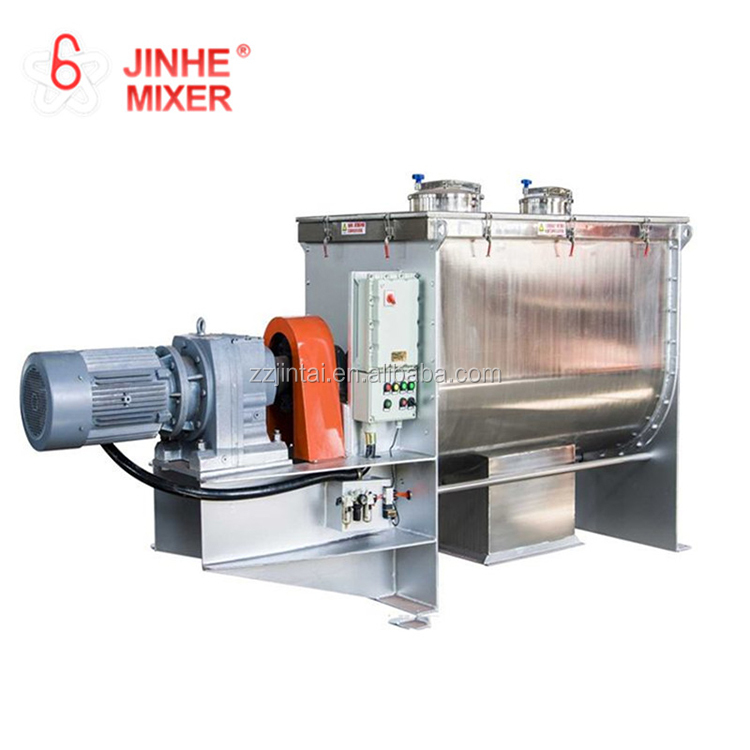

JHRB Horizontar Ribbon Blender

Mixed volume of material:150L~15000L

Mixer power:3KW~55KW

FOREWORD
JHRB  Horizontal spiral belt mixing machine comprises of U-shape container, transmission parts and spiral belt agitating blades which usually have double or triple layers with outside screw gathering the material from sides to center and inside screw transmitting the material from center to sides to form convection mix. Spiral belt mixing machine has a good result in the mix of viscosity or cohesion powder and of putting liquid and mash material into the powder. The cylinder cover can be fully open so as to clean and change the device
JINHE NEW factory Show
\
\
Production Introduction



?



\
\



\
\
\

How ribbon mixer machine work?

Ribbon mixer consist of a U-shaped horizontal trough and a specially fabricated ribbon agitator. A ribbon agitator consists of a set of inner and outer helical blades. The outer ribbon moves materials toward the center of the trough, and the inner ribbon moves the materials toward the outside of the trough. The ribbon also rotates at approx. 50rpm, thus moving materials both radially and laterally to insure thorough blends in short cycle times. Ribbon agitators are used for blends that will be between 40 and 70% of the rated capacity of the blender.

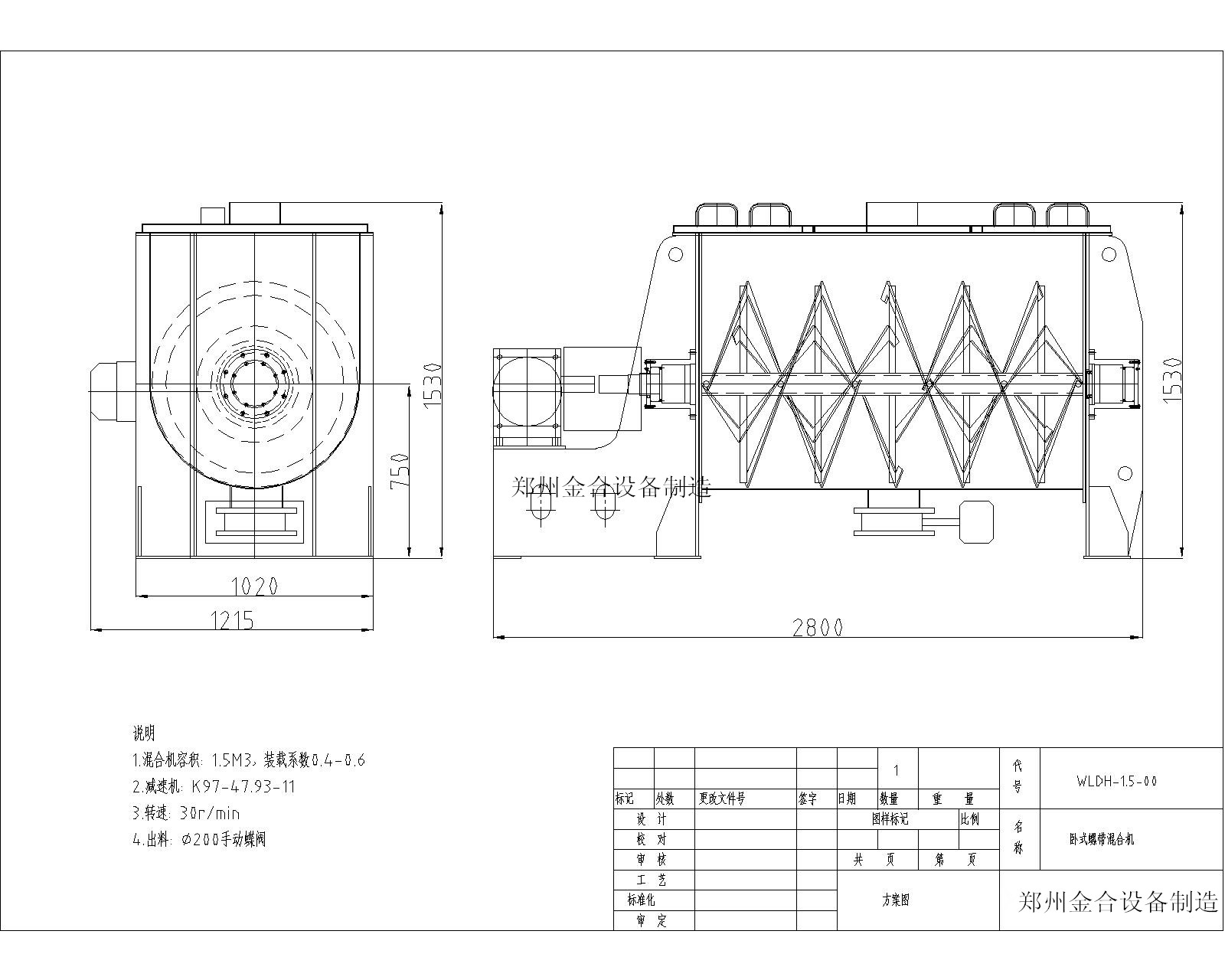

Equipment and Constitution Picture
Model Project
Total Volume (M³)
Loads coefficient
Electrical
machiney
power (KW)
Size(mm)× Max-diameter ×High
Equipment weight (kg)
JHRB-150
0.15
0.4-0.8
3
1190×740×770
330
JHRB-300
0.3
0.4-0.8
4
2030×630×980
720
JHRB-500
0.5
0.4-0.8
7.5
2320×730×1130
980
JHRB1000
1
0.4-0.8
11
2800×920×1320
1700
JHRB1500
1.5
0.4-0.8
11
3180×1020×1550
1800
JHRB2000
2
0.4-0.8
15
3310×1120×1640
2100
JHRB3000
3
0.4-0.8
18.5
3750×1290×1820
3000
JHRB4000
4
0.4-0.8
22
4220×1400×1990
3980
JHRB5000
5
0.4-0.8
22
4220×1500×2100
4620
JHRB6000
6
0.4-0.8
30
4700×1610×2260
6180
JHRB8000
8
0.4-0.8
37
4420×2150×2470
8200
JHRB10000
10
0.4-0.8
45
5520×2960×2720
8920
JHRB12000
12
0.4-0.8
45
5720×3010×2840
9520
JHRB15000
15
0.4-0.8
55
5840×3540×2940
9950


Production Advantage
\\
Usage

Ribbon mixer mainly serves in below industries:
