Powder Machinery
BYC Copper Sugar Coating Pan Machine

Mixed volume of material：

Mixer power：

FOREWORD
Our peanut sugar coating machine is available with 304 stainless steel,SS316,Copper coating pan. our peanut sugar coating machine is designed with fabricated structure fitted with SS cover and drive motor and reduction gear box. The peanut sugar coating machine pan can be customized to make 60 °,180 °, 360 °angle to easy for discharge or add simple discharge valve. The peanut sugar coating machine size and shape can be customized if you need according to different usage : 2.Sugar ,chocolate coating for nuts,fruit ,popcorn etc in food industrial 3.Powder ,paint,color coating in chemical industrial 4.Polishing and shinning and rolling for ball shape end product,For example:pearl ball,Gums,candies.
\
Production Introduction
Model BY600 BY800 BY1000 BY1250 BY1500
Dia of sugarcoating dish (mm) 600 800 1000 1250 1500
Production capacity (kg/time) 15 30-50 50-70 80-150 300-400
Rotation speed(r/min) 36 36 32 28 26
Power of motor(KW) 0.75 1.5 1.5 3 5.5
Power of fan(W) 75 120 120 180 370
Power of heat(KW)  2 2 3 5 6
Overall size(mm) 800*600*900 1000*800*1430 1100*1000*1560 1250*1200*1820 1500*1500*1980
Weight(kg) 85 205 220 350 600

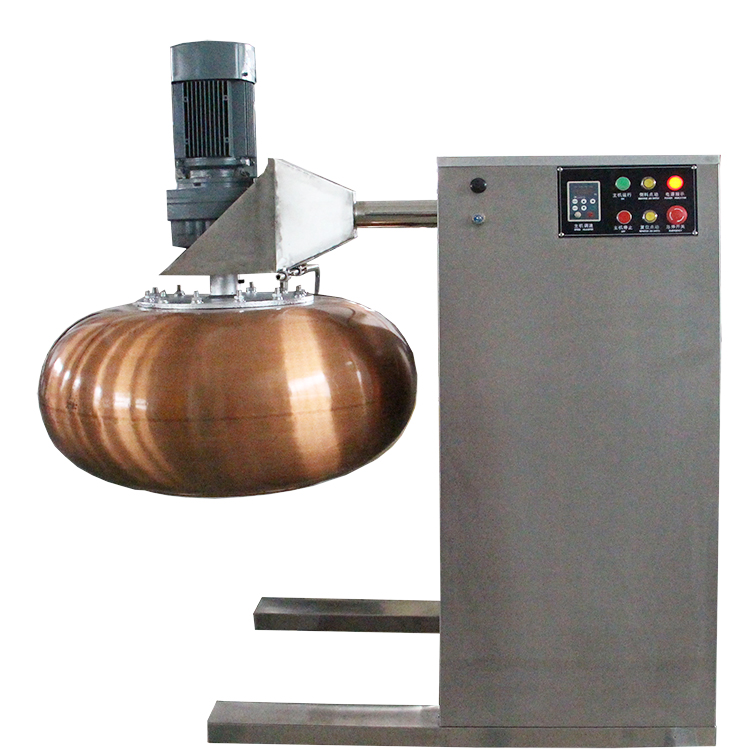

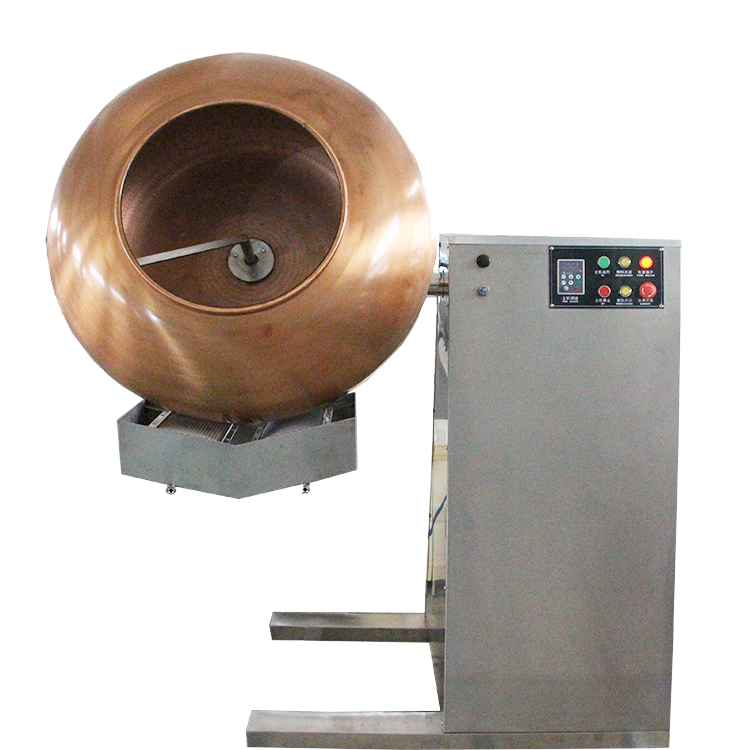

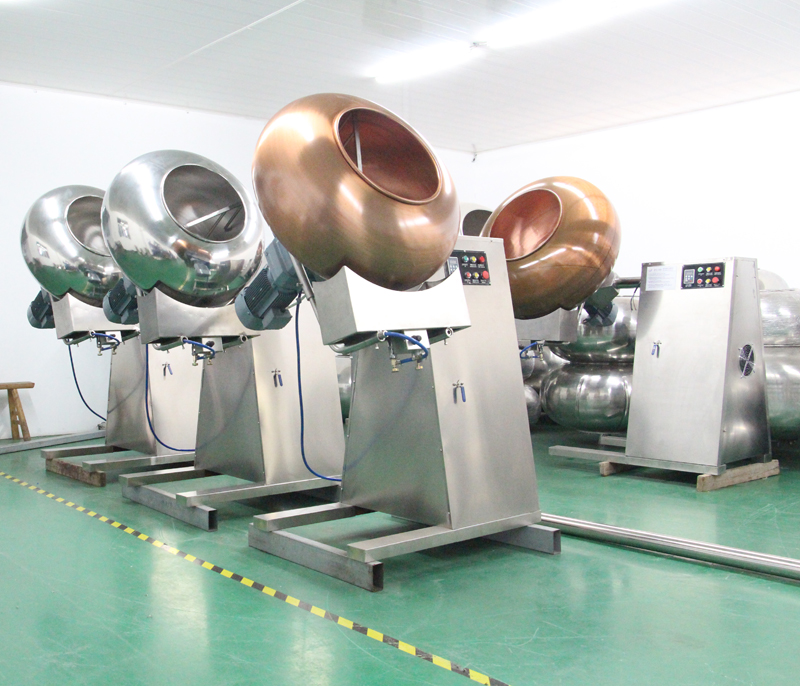

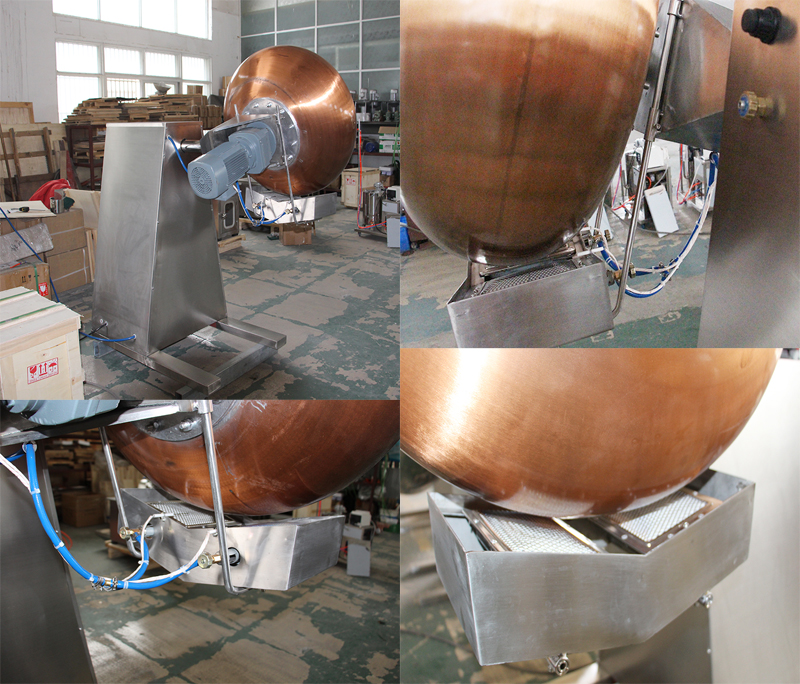

Equipment and Constitution Picture


Production Advantage
