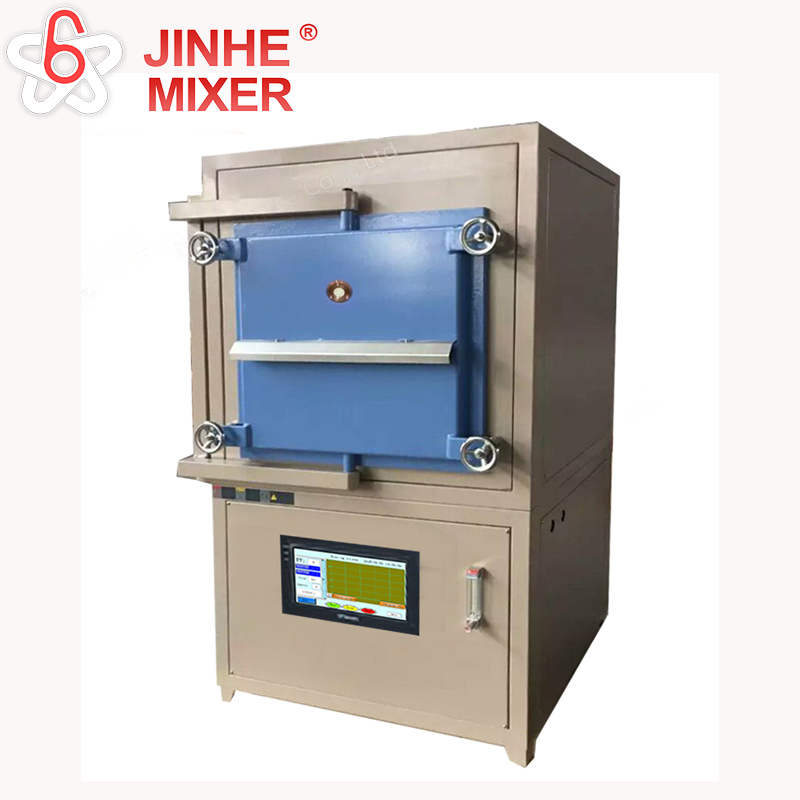

Smelting Furnace Gold

Mixed volume of material

Mixer power

FOREWORD








Specification:
Crucible effective capacity (Steel) 20KG
Max temperature 1800C
Max melting vacuum

7x10-3Pa

 Vacuum time: open diffusion pump when preheating is complete, then up to 7x10-3Pa within 30 minutes.

Rated power 60KW
Rated voltage 375V
Power frequency 50HZ
Rated frequency 1500~2500HZ
Heat element Induction copper coil
Vacuum system

70L/s Double stage Rotary vane mechanical pump

 Dia.300mm diffusion pump, Max. pumping speed: 5000L/s

 Dia.300mm diffusion pump cooling trap.

 Dia.300mm diffusion pump flapper valve + Dia.80mm former pump flapper valve

 Stainless pipe + stainless bellows



Warranty

Warranty One year limited warranty with life time support.  (Consumable parts such as heater and crucibles are not covered by the warranty, please order the replacement at related products)
Free technical support Lifetime
Value-added services

Sample test: We have a sample lab to offer you free sample test.

According to your requirement, we can test the material, process, etc.

Save your time and money, good for your project.

 Technical consultant: We offer free technical consultant regarding furnace, heater, heating-treatment, etc.



Standard size

Model Capacity Power
JH-RLL-5 5kg 40KW
JH-RLL-10 10KG 40KW
JH-RLL-20  20KG 60KW
JH-RLL-25 25KG 75KW
JH-RLL-50 50KG 150KW
JH-RLL-100  100KG 250KW
JH-RLL-200  200KG 350KW
JH-RLL-300 300KG 500KW
JH-RLL-500 500KG  700KW
