Double Cone Chemical Mixer
JINHE brand Lab using ultrasonic vibrating screen

Mixed volume of material

Mixer power

JINHE NEW factory Show
Ultrasonic vibrating screen is a derivative of the rotary vibrating screen, which achieves the purpose of high efficiency sieving & screen cleaning, and makes it easy to sieve the superfine powder. Compared with general vibrating screen, this system adds a low amplitude, high frequency ultrasonic vibration wave (mechanical wave) on the screen to improve the sieving performance to superfine powders.

It can solve the strong adsorption, easy to reunite, high static, high precision, high density, light weight and other screening problems. It is suitable for those who demand high value added and fine powders.

Main Characteristics:

1) Reduce or eliminate the time for cleaning screen.

2) Eliminate the pollution to powders by bounce balls.

3) Keep screen mesh size & stabilize sieving fineness.

4) Reduce materials on the sieve via disintegrating materials on the sieve.

5) Decrease sieving times.

Ultrasonic device:

Production Introduction

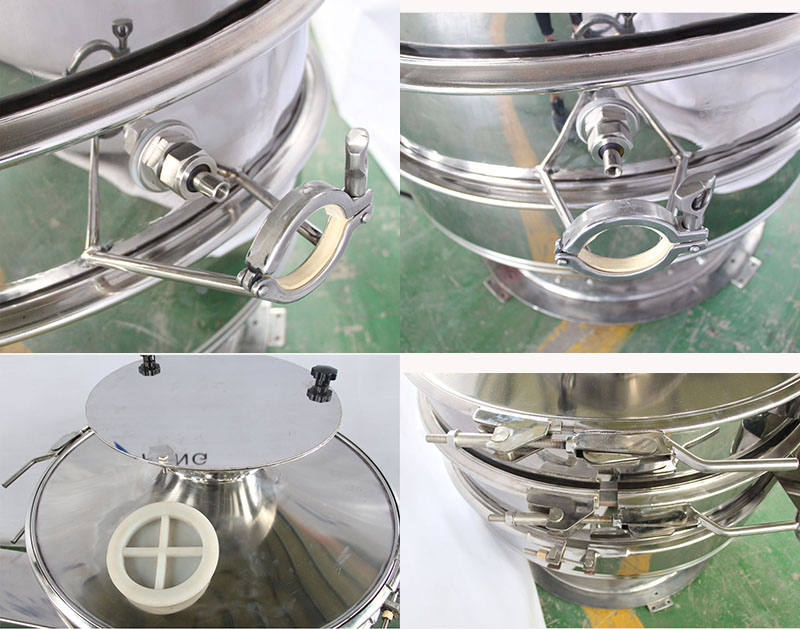

Equipment and Constitution Picture
Technical Parameters:
Model  Frame Dia.
Screen Surface
 Dia. (mm)
Effective Sieve
 Area (㎡)
Largest Particle
 Size (mm)
Mesh (m/'')
Layer  Vibration
JHVI-400 400 340 0.09 <10 2-500 1~5 1500 0.22
JHVI-600 600 530 0.22 <10 0.55
JHVI-800 800 720 0.4 <20 0.75
JHVI-1000 1000 900 0.63 <20 1.1
JHVI-1200 1200 1100 0.95 <20 1.5
JHVI-1500 1500 1400 1.5 <20 2.2
JHVI-1800 1800 1710 2.3 <30 3.0
JHVI-2000 2000 1910 2.86 <30 4.0

Production Advantage
Application Case
Quality of products

Generally, our equipments are the most durable type in the industry. With our experienced quality control team, we are trying to offer most of our customers the product with bset quality. However, we do recognized that there do have small amount of the product which may got faulty or damaged for different reasons.
After-sale service
In the gurantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include .

1) High efficiency, refined design, duration,any powders and mucilage are suitable for          using.
2) Easily to replace the screen, simple operation and convenience washing.
3) Never jam the hole meshwork, no powder flying, filter size of the powder between 500      mesh and 0.028 mm.
4) Discharge the impurity and coarse materials automobile and operates continuously.
5) Unique screen flame design, long duration of screen, only 3-5 to replace the screen.
6) Small volume, move easily.
7) The highest layers of the screen are about 5 layers. But 3 layers are suggested.
